    • S24T6-PTFE Replacement UV Lamp 254NM PTFE Coating

    • S24T6-PTFE Single Pin PTFE lamp
    usa
    See below details for the S24T6-PTFE Replacement UV Lamp 254NM PTFE Coating.

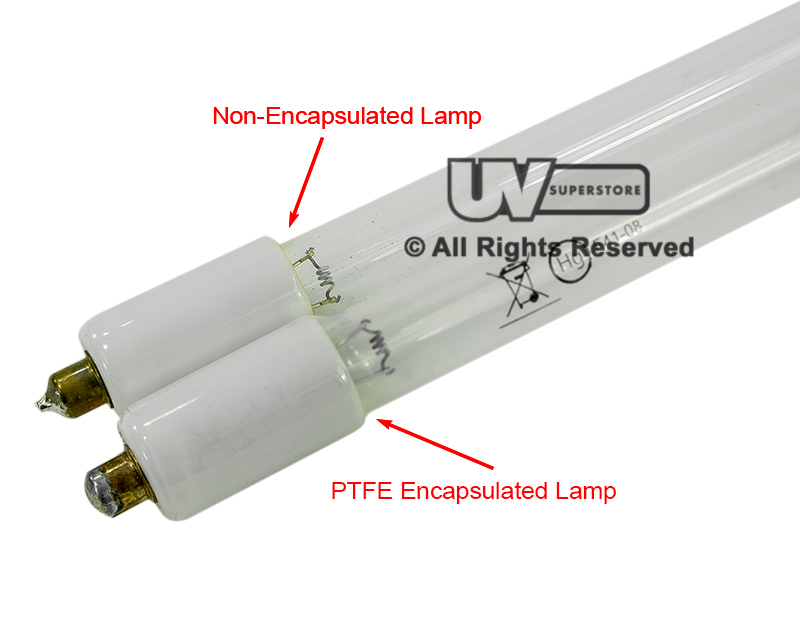

    The S24T6-PTFE Replacement UV Lamp 254NM PTFE Coating is encapsulated with Polytetrafluoroethylene (PTFE). The addition of a thin layer of UV transmittable PTFE (.25mm) encases the full length of the lamp and connectors using a special heat process. If the lamp is broken during installation, equipment operation or re-lamping, the components of the lamp are fully contained and the purity of the environment is not contaminated.

    UV Superstore’s lines of replacement germicidal ultraviolet lamps are manufactured in the USA with pure quartz tubing designed to meet or exceed industry standards. We insist on 100% quality control inspection with each ultraviolet lamp to ensure only the best products to our customers.

    Our Part #:  S24T6L-PTFE
    Length:  21.26" or 540 mm ± 3mm (not including pins)
    Base Type:  Single Pin each end
    Lamp Type:  Standard Output, PTFE Coating
    Wavelength:  254NM
    Glass Type:  L (Non-Ozone)
    Base Color / Material:  White Ceramic Base
    Bulb Diameter:  15mm
    Lamp Voltage*:  70V
    Lamp Wattage*:  27W
    Operating Current*:  420mA
    Rated Life (hrs)**:  9000
    Replaces/Fits Models:  Atlantic UV 05-6011, 056011, NUTRIPURE TANK AIR SERIES 2B-SC, 2BSC, 3B-SC, 3BSC, 4B-SC, 4BSC, 4B-ASC, 4BASC, 5B-SC, 5BSC, 5B-ASC, 5BASC, Siemens/Sunlight LP4185, B10018242, First Light 1490-PTFE, Foodline S24T6-TC, S24T6TC, SC-23, SC23, SC-24, SC24, SC-25, SC25

    *Operating Current, voltage, wattage disclaimer — Lamps are measured after 100 hours of operation under lab conditions. These values are subject to wide variations under application/field conditions.

    **Rated Life — Rated life is based on a group of lamps operating under lab conditions and is for reference purposes only. Actual life depends on the operating conditions of the lamp. Please follow the Original Equipment Manufacturers (OEM) suggested UV lamp change out schedule to ensure optimal performance.
