GS692PTFE Replacement UV Lamp 254NM PTFE Coating
See below details for the GS692PTFE Replacement UV Lamp 254NM PTFE Coating

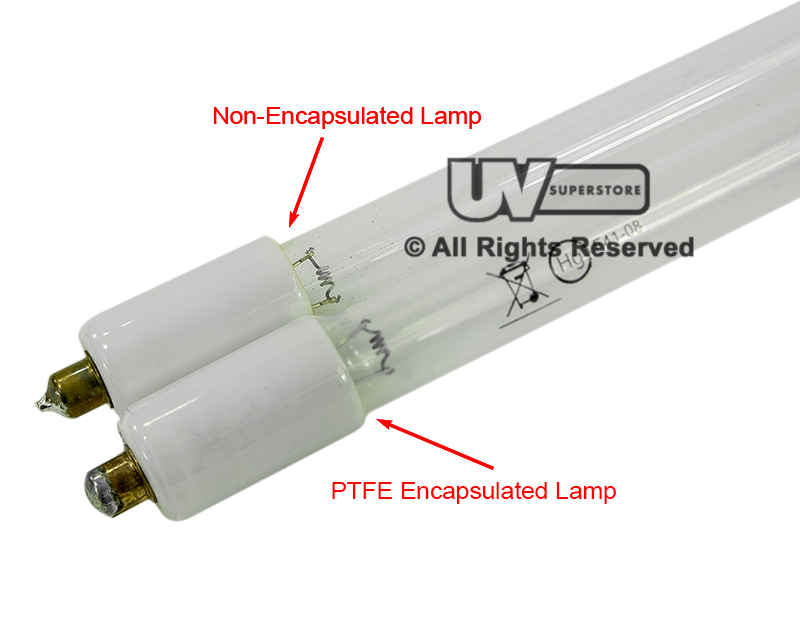

The GS692PTFE Replacement UV Lamp 254NM PTFE Coating is encapsulated with Polytetrafluoroethylene (PTFE). The addition of a thin layer of UV transmittable PTFE (.25mm) encases the full length of the lamp and connectors using a special heat process. If the lamp is broken during installation, equipment operation or re-lamping, the components of the lamp are fully contained and the purity of the environment is not contaminated.
UV Superstore’s lines of replacement germicidal ultraviolet lamps are manufactured in the USA with pure quartz tubing designed to meet or exceed industry standards. We insist on 100% quality control inspection with each ultraviolet lamp to ensure only the best products to our customers.
| Our Part #: | GS692PTFE |
| Length: | 27.24" or 692 mm ± 3mm (not including pins) |
| Base Type: | Single Pin each end |
| Lamp Type: | Standard Output, PTFE Coating |
| Wavelength: | 254NM |
| Glass Type: | L (Non-Ozone) |
| Base Color / Material: | White Ceramic Base |
| Bulb Diameter: | 15mm |
| Lamp Voltage*: | 90V |
| Lamp Wattage*: | 32W |
| Operating Current*: | 420mA |
| Rated Life (hrs)**: | 12000 |
| Replaces/Fits Models: | Aqua Azul L-1-841, Aquafine DW-100, 3070, Atlantic UV 05-1352, 05-6013, 056013, NUTRIPURE AIR TANK SERIES 6B-SC, 6BSC, 6B-ASC, 6BASC, Glasco L-070427, UDC 7001-814, 8140, Q1, Wedeco, Ideal Horizons QU-1, QU-2, QU-3, QU-4, IH-5, LMP12002, First Light 1262, FOODLINE G30T6L-TC, SC-26AB, SC26AB, G30T6LTC |
|
*Operating Current, voltage, wattage disclaimer — Lamps are measured after 100 hours of operation under lab conditions. These values are subject to wide variations under application/field conditions. **Rated Life — Rated life is based on a group of lamps operating under lab conditions and is for reference purposes only. Actual life depends on the operating conditions of the lamp. Please follow the Original Equipment Manufacturers (OEM) suggested UV lamp change out schedule to ensure optimal performance. |
|
