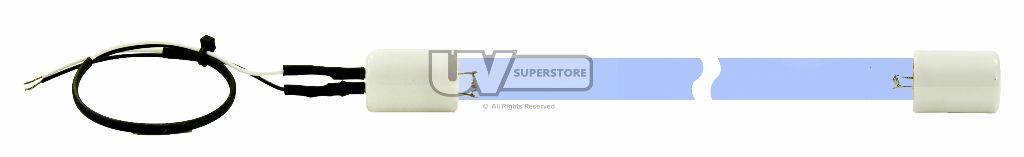

G64-61645-G01 Replacement UV Lamp 254NM
See below details for the G64-61645-G01 Replacement UV Lamp 254NM.
UV Superstore’s lines of replacement germicidal ultraviolet lamps are manufactured in the USA with pure quartz tubing designed to meet or exceed industry standards. We insist on 100% quality control inspection with each ultraviolet lamp to ensure only the best products to our customers.
| Our Part #: | 2026 |
| Length: | 61.18" or 1554 mm ± 3mm (not including pins) |

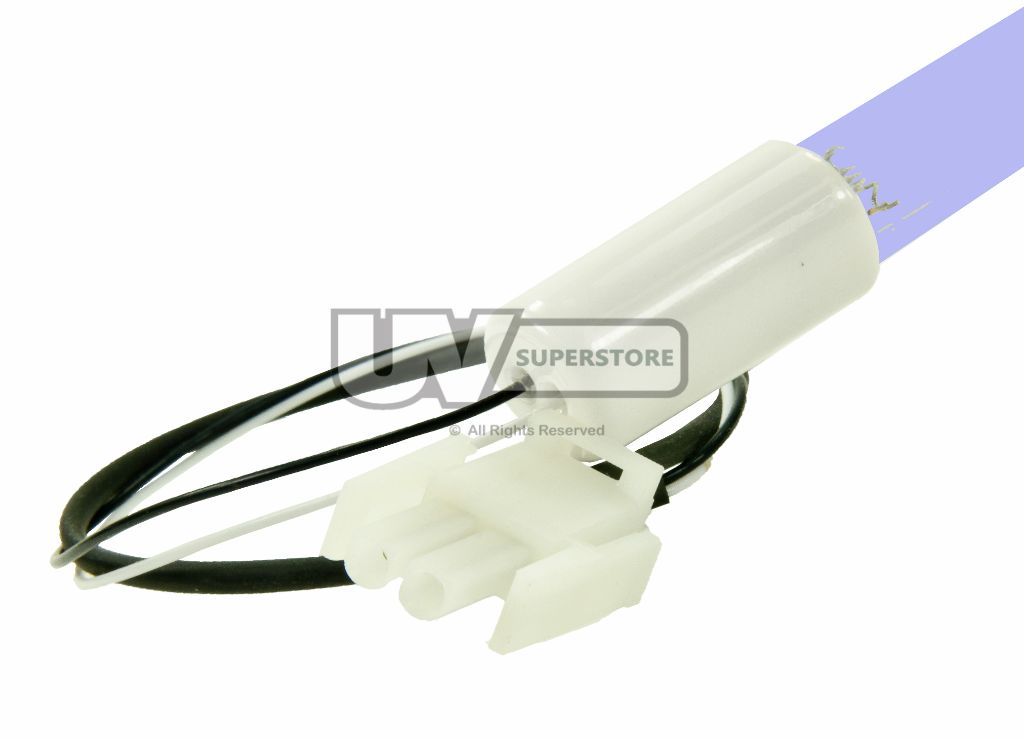

| Base Type: | 2 Pin with 18" Pig Tail |
| Lamp Type: | High Output |
| Wavelength: | 254NM |
| Glass Type: | L (Non-Ozone) |
| Base Color / Material: | White Ceramic Base |
| Bulb Diameter: | 15mm |
| Lamp Voltage*: | 160V |
| Lamp Wattage*: | 150W |
| Operating Current*: | 940mA |
| Rated Life (hrs)**: | 12000 |
| Replaces/Fits Models: | IDI 61645-G01, 61645G01, First Light 2026, UV Doctor 1187, UVDRX1187, UVDRX-1187 |
|
*Operating Current, voltage, wattage disclaimer — Lamps are measured after 100 hours of operation under lab conditions. These values are subject to wide variations under application/field conditions. **Rated Life — Rated life is based on a group of lamps operating under lab conditions and is for reference purposes only. Actual life depends on the operating conditions of the lamp. Please follow the Original Equipment Manufacturers (OEM) suggested UV lamp change out schedule to ensure optimal performance. |
|
