G36-3084-4P-PTFE Replacement UV Lamp 254NM PTFE Coating
See below details for the G36-3084-4P-PTFE Replacement UV Lamp 254NM PTFE Coating

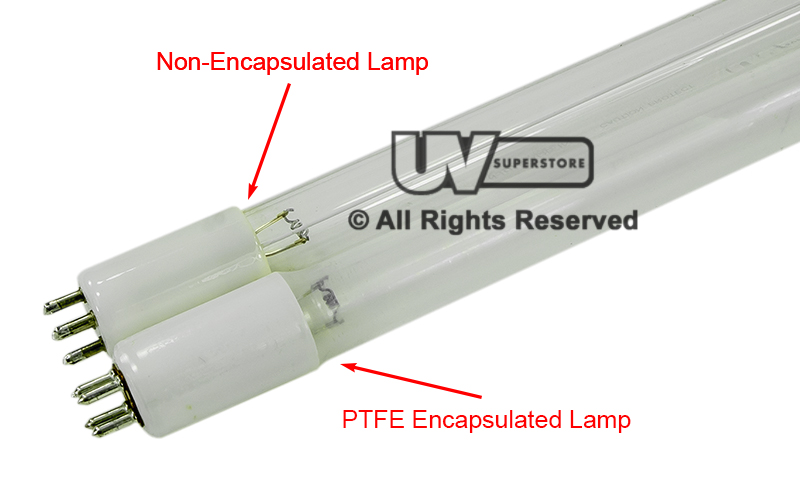

The G36-3084-4P-PTFE Replacement UV Lamp 254NM PTFE Coating is encapsulated with Polytetrafluoroethylene (PTFE). The addition of a thin layer of UV transmittable PTFE (.25mm) encases the full length of the lamp and connectors using a special heat process. If the lamp is broken during installation, equipment operation or re-lamping, the components of the lamp are fully contained and the purity of the environment is not contaminated.
UV Superstore’s lines of replacement germicidal ultraviolet lamps are manufactured in the USA with pure quartz tubing designed to meet or exceed industry standards. We insist on 100% quality control inspection with each ultraviolet lamp to ensure only the best products to our customers.
| Our Part #: | G36-3084-4P-PTFE |
| Length: | 33.19" or 843 mm ± 3mm (not including pins) |
| Base Type: | 4 Pin Flat Base |
| Lamp Type: | Standard Output, PTFE Coating |
| Wavelength: | 254NM |
| Glass Type: | L (Non-Ozone) |
| Base Color / Material: | White Ceramic Base |
| Bulb Diameter: | 15mm |
| Lamp Voltage*: | 120V |
| Lamp Wattage*: | 40W |
| Operating Current*: | 420mA |
| Rated Life (hrs)**: | 12000 |
| Replaces/Fits Models: | First Light 2532-PTFE, FULLER ULTRAVIOLET 1043AST, 1043 AST, 1043 |
|
*Operating Current, voltage, wattage disclaimer — Lamps are measured after 100 hours of operation under lab conditions. These values are subject to wide variations under application/field conditions. **Rated Life — Rated life is based on a group of lamps operating under lab conditions and is for reference purposes only. Actual life depends on the operating conditions of the lamp. Please follow the Original Equipment Manufacturers (OEM) suggested UV lamp change out schedule to ensure optimal performance. |
|
