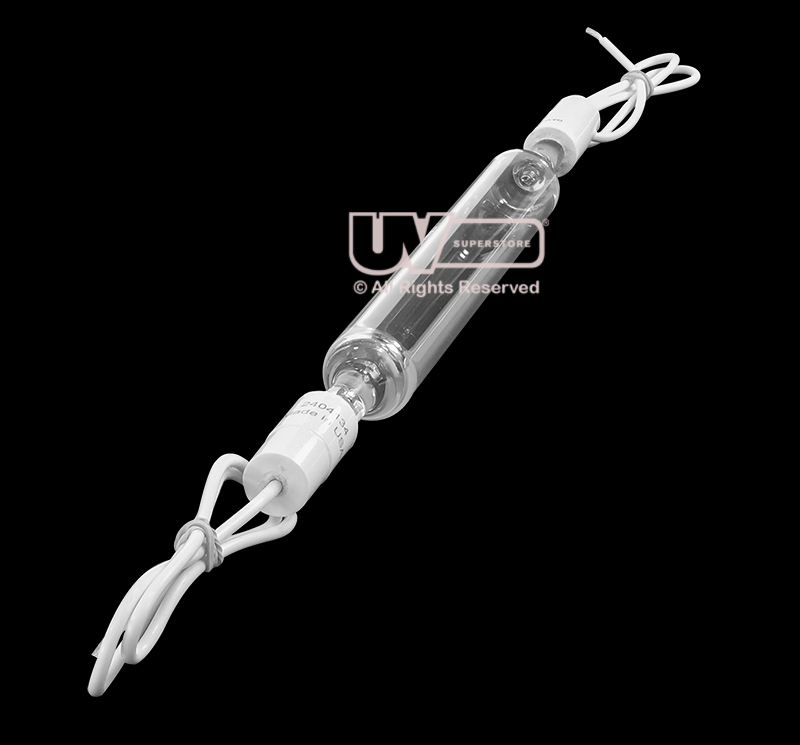

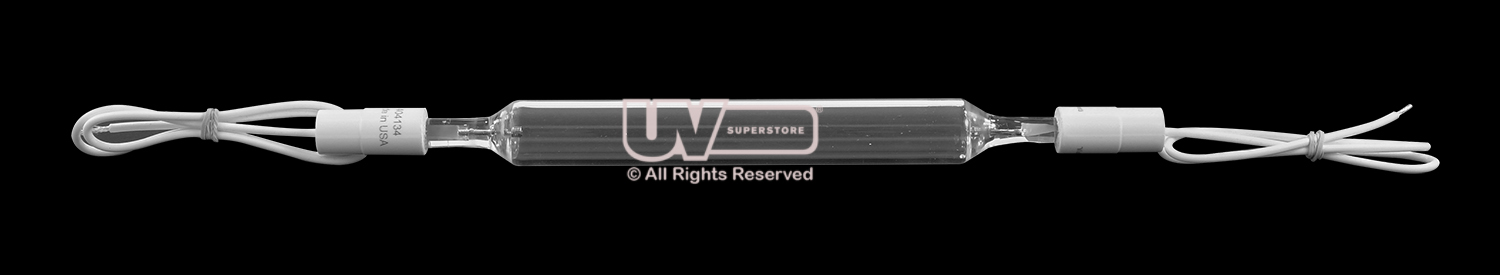

ATGW1501220 Replacement UV Lamp Medium Pressure
See below details for the ATGW1501220 Replacement UV Lamp Medium Pressure.
The ATGW1501220 Replacement UV Lamp Medium Pressure is used in ETS UV system ECF-215-6-4XSTVP 480V, MP15D 400V. UV Superstore’s lines of replacement germicidal ultraviolet lamps are manufactured in the USA with pure quartz tubing designed to meet or exceed industry standards. We insist on 100% quality control inspection with each ultraviolet lamp to ensure only the best products to our customers.
| Our Part #: | ATGW1501220 |
| Length: | 10.94" or 278 mm ± 3mm (not including pins) |
| Lamp Type: | Medium Pressure |
| Base Color / Material: | White Ceramic Base |
| Bulb Diameter: | 22mm |
| Lamp Wattage*: | 15000W |
| Replaces/Fits Models: | ETS UV , ATGW1501220, 1000-2917, 10002917, ECF Series ECF-215-6-220V, ECF2156, MP15D 400V |
|
*Operating Current, voltage, wattage disclaimer — Lamps are measured after 100 hours of operation under lab conditions. These values are subject to wide variations under application/field conditions. **Rated Life — Rated life is based on a group of lamps operating under lab conditions and is for reference purposes only. Actual life depends on the operating conditions of the lamp. Please follow the Original Equipment Manufacturers (OEM) suggested UV lamp change out schedule to ensure optimal performance. |
|
