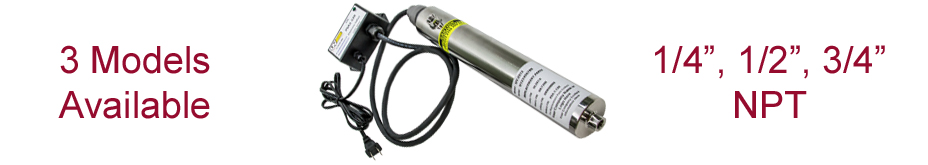

Thin Film Series UV Water Treatment System

UV Superstore prides itself with the ability to be successful with low UV transmission (UVT) fluids. The Thin Film Series is specifically designed for commercial and industrial applications with low ultraviolet transmission (UVT) fluids below 50%. Each unit is engineered to provide optimized flow and retention time to effectively reduce bacteria by up to 99.9%. The Thin Film Series is used for disinfection, ozone destruction or TOC reduction. Sizing and application for these types of fluids is considerably more complicated and detailed.

Prior experience and a commitment to sound engineering principles is the key to our success. Contact our knowledgeable sales team with your specific requirements and let us size the appropriate system for your application.

Standard Features (All Models):

  • Processes up to 10 GPM based on RO / DI water
  • Custom systems are available fro higher flow rates
  • Electropolished 316LSS treatment chamber
  • 125 PSI Maximum Operating Pressure
  • NPT Inlet and Outlet Connections
  • Single Ultraviolet Lamp Design
  • 254NM or 185NM Standard Output UV Lamp with 10,000 hour lamp life
  • Heavy-duty Silica Quartz Sleeve
  • LED lamp operational status
  • Vertical or Horizontal Mounting
  • Grounded Power Cord
  • 120VAC/60Hz/1-Phase

Available Options (All Models):

  • 220VAC/50Hz/1-Phase

Thin Film Series UV Water Treatment Systems Product Specifications

Treatment:         Disinfection, Ozone Destruction, TOC Reduction

Application:       Commercial and Industrial

Flow Rates*:       up to 10 GPM

*Flow rates based on 95% UVT for clear fresh water and 99% UVT for RO and DI Water. Contact UV Superstore for custom systems with higher flow rates. For complete product details click on buttons/links in below table.

Contact Us
or Get Quote
Click Here
Model No.Max Capacity GPM
RO/DI Water
UV Dosage
MJ/cm²
I/O
Connections
Spec SheetManual
UV-20122301/4" NPT
1/2" NPT
DownloadDownload
UV-20356303/4" NPTDownloadDownload
UV-206410303/4" NPTDownloadDownload
